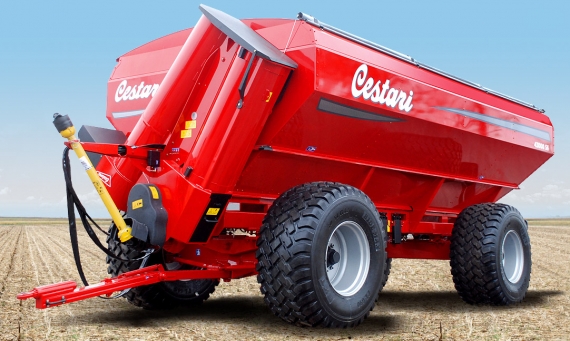

43,000 Litre Cestari Chaser Bin
Photo for illustration purposes. Vennings fit a lug type tractor tyre to the bins, not the tyres as illustrated
MODEL 43000 4 Wheel Bin Comes with Electronic Scales, Roll Top Tarp, New 30.5x32 18 Ply Tractor Lug Type Tyres, PTO Drive and 580mm (22.8”) Unloading Auger discharges approximately 12 ton per minute. Hydrauliclly controlled cleanout floor for quick cleaning. Fitted with adjustable spout & 9” quad view monitor with 3 cameras tail stop and turning indicators, revolving light and oversize sign. .
 |
 |
 |
| Heavy Duty Roll over Tarp fitted to bin | External & Internal Ladders. Rear ladder folds up keeping wit well out of the way when not in use | Indicator on front of bin shows position of shut off doors allowing bin to be unloaded at any speed |
 |
 |
 |
| Door can be used to load an auger hopper for filling larger silos. Or for emergency cleanout in case of auger failure. |
Organiser for hoses and light cables. One pair of the hoses for the hydraulic folding auger & the other pair for shut of covers for floor auger |
External centralized lubrication point makes lubrication and maintain a simple task |
 |
 |
 |
| Cleanout handle on the rear of bin to open cleanout door on the bottom of the bin | Tail Stop and turn indicators on folding arms | Pivoting drawbar for easy turning |
 |
 |
 |
| 580mm (22.8") discharge auger unloads at approximately 12 ton per minute | Front steering axle made from 16mm Folded Plate 230mm x 160mm tempered by induction with heavy duty bearings and 8 stud hubs | Rear axle made from 13mm Folded Plate 320mm x 160mm tempered by induction with heavy duty bearings and 10 stud hubs |
 |
 |
 |
| One of the four load cells fitted between the axle and the bin with .05% accuracy. | Heavy Duty Plastic tool box for convenient storage of tools and other requirements |
Oversize Sign & Revolving lights fitted to bin |
 |
 |
 |
 |
| Two large viewing windows fitted to the front of the bin and one large viewing window fitted to the rear | Discharge auger is fitted with spring leaded top bearing in case auger is folded out and flighting is not in correct position | Tow hitch fitted to the rear of the bin for towing augers or portable bins for on farm use only (check legal requirements in your state) | Large trapdoor fitted to the bottom of bin with quick and easy cleanout of bin |
| Weight | 7,000Kg on DW20x30wheels |
| Capacity | 43,000 litres |
| Maximum Load | 34,400 kg |
| Discharge Auger | 580mm (22.8") diameter Auger with a discharge rate up to 12 ton per minute. Fitted with hydraulic raise & lower. |
| Unloading Time | Approximately 3 minutes |

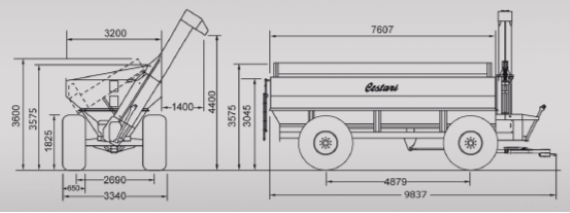

| Discharge Height | Discharge Height under spout 4400mm |
| Floor Auger | 470mm (18.5") sweep auger. Hydraulic ram controlled shut off doors cover auger flight allowing bin to be unloaded at any speed |
| Hydraulics | Requires three pairs of hydraulics, One pair for the hydraulic folding auger, one for shut of covers of floor auger and one for the bin cleanout |
| Front Axle | Front steering axle made from 16mm Folded Plate 230mm x 160mm homogenized & tempered by induction with heavy duty directional forks with heavy duty bearings and 10 stud hubs |
| Rear Axle | Rear axle made from 13mm Folded Plate 320mm x 160mm homogenized & tempered by induction with heavy duty bearings and 10 stud hubs |
| Wheels | DW27x32 10 Stud Rims |
| Tyres | 30.5 x 32 18 Ply Tractor Lug Type Tyres |
| PTO Shaft | Telescopic PTO Shaft with safety covers and shear pin to prevent breakage |
| Gear Box | Heavy duty gearbox with forged steel and oil coated gears |
| Recommended Tractor | 180 to 200 H/P Tractor on firm ground 200 H/P + Tractor on soft ground |
| Cleanout | Simple hydraulic cleanout slide fitted to the bottom of the bin |
| Scales | Electronic scales with .05% accuracy. Four load cells fitted to bin with two weigh cells under the front axle and two under the rear axle. |
| Signs and Lights | Over size sign, revolving light and LED stop tail & turning lights |
| Roll Tarp | Complete with Heavy Duty Roll Top Tarp. |
| Work Light | Work light mounted by the discharge spout |
| Sight Glasses | Two large sight glasses fitted to the front of the bin & one large sight glass fitted to the rear of the bin |
| Ladders | Fitted with a rear and internal ladder. Rear ladder folds up keeping it well out of the way when not in use. |
| Folding Chute | Electronically controlled folding chute on end of discharge auger |
| Quad View Monitor with 3 cameras | Quad view 9" monitor with 3 Camera’s mounted on the Bin, one on the end of the discharge chute, one inside the bin and one at the rear of the bin |
9" LCD Quad View Colour Digital Touchscreen Monitor
Single, Dual, Triple, Quad-View & Picture in Picture Functions Suitable for up to 4 Waterproof Cameras
- Touchscreen with fingertip operation
- Day / Night brightness controls
- Supplied with centre mount support bracket and U bracket
- Operates from 10-32 Volts
- Supplied with 6 metre power supply cable
- Brightness, colour, contrast, volume & sharp can be separately adjusted
- Vennings recommend fitting one camera on the discharge auger one camera in the bin and one on the rear of the bin for road transport
