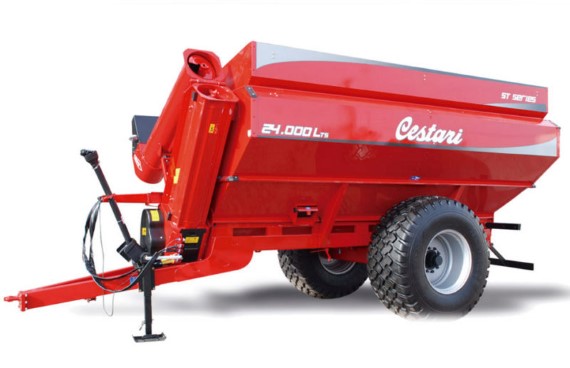

24,000 Litre Cestari Chaser Bin
Photo for illustration purposes. Vennings fit a lug type tractor tyre to the bins, not the tyres as illustrated
Comes with Electronic Scales, Roll Top Tarp, New 30.5x32 16 Ply Tractor Lug Type Tyres and PTO Drive. Holds Approximately 23 Ton of Wheat (with extended Sides not illustrated) 16 1/2” Unloading Auger which takes approximately 3 minutes to unload. Hydrauliclly controlled cleanout floor for quick cleaning. Fitted with tail stop and turning indicators, revolving light and oversize sign. Available with adjustable discharge spout & 9” quad monitor with three cameras.
 |
 |
 |
| Heavy Duty Roll over Tarp fitted to bin | External & Internal Ladders. Rear ladder folds up keeping wit well out of the way when not in use | Door can be used to load an auger hopper for filling larger silos. Or for emergency cleanout in case of auger failure. |
 |
-1_190_147.jpg) |
 |
| Indicator on front of bin shows position of shut off doors allowing bin to be unloaded at any speed. The doors also stop compaction of grain into the sweep flight while the bin is loaded and travelling. |
Hydraulic cylinder for shut of doors. |
Organiser for hoses and light cables. One pair of the hoses for the hydraulic folding auger & the other pair for shut of covers for floor auger |
 |
 |
 |
| Cleanout handle on the rear of bin to open cleanout door on the bottom of the bin | Tail Stop and turn indicators on folding arms | 480mm (18.9") discharge auger unloads at approximately 7 ton per minute |
 |
-19_190_147.jpg) |
 |
| One of the two load cells fitted between the axle and the bin with .05% accuracy. | Height adjustable drawbar with hitch mounted load cell. | Large trapdoor fitted to the bottom of bin for quick and easy cleanout of bin |
 |
 |
 |
| Wide wing I Beam axle 240x240 fitted with heavy duty 10 stud hubs | 2 x wheel chocks mounted on bin |
Oversize Sign & Revolving lights fitted to bin |
 |
-19_190_147.jpg) |
 |
| External centralized lubrication point makes lubrication and maintain a simple task | Work light fitted to the discharge auger for night time work. | 10 Stud Heavy Duty Hubs |
 |
 |
 |
 |
| Two large viewing windows fitted to the front of the bin and one large viewing window fitted to the rear | Discharge auger is fitted with spring leaded top bearing in case auger is folded out and flighting is not in correct position | Tow hitch fitted to the rear of the bin for towing augers or portable bins for on farm use only (check legal requirements in your state) |
Drop leg jack fitted to front of bin allows quick disconnection from tractor |
| Weight | 3,830Kg on wheels |
| Capacity | 24,000 litres |
| Maximum Load | 21,000 kg |
| Discharge Auger | Standard with 480mm (18.9") diameter Auger with a discharge rate up to 7 ton per minute. Fitted with hydraulic raise & lower. |
| Unloading Time | Approximately 3 minutes |

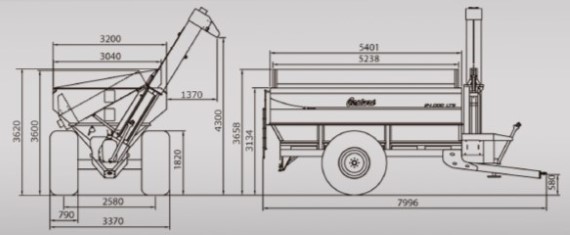

| Discharge Height | Discharge Height under spout 4300mm |
| Floor Auger | 336mm (13") sweep auger. Hydraulic ram controlled shut off doors cover auger flight allowing bin to be unloaded at any speed |
| Hydraulics | Requires three pairs of hydraulics, One pair for the hydraulic folding auger, one for shut of covers of floor auger and one for the bin cleanout |
| Axles | Wide wing I Beam 240mm x 240mm fitted with heavy duty 10 stud hubs |
| Wheels | DW27x32 10 Stud Rims |
| Tyres | 30.5 x 32 18 Ply Tractor Lug Type Tyres |
| PTO Shaft | Telescopic PTO Shaft with safety covers and shear pin to prevent breakage |
| Gear Box | Heavy duty gearbox with forged steel and oil coated gears |
| Recommended Tractor | 100 to 120 H/P Tractor on firm ground 120 to 140 H/P Tractor on soft ground |
| Cleanout | Simple hydraulic cleanout slide fitted to the bottom of the bin |
| Scales | Electronic scales with .05% accuracy. Two weigh cells under the axle & one between the tow hitch and the bin. |
| Signs and Lights | Over size sign, revolving light and LED stop tail & turning lights |
| Roll Tarp | Complete with Heavy Duty Roll Top Tarp. |
| Work Light | Work light mounted by the discharge spout |
| Sight Glasses | Two sight glasses fitted to the front of the bin |
| Ladders | Fitted with a rear and internal ladder. Rear ladder folds up keeping it well out of the way when not in use. |
| Folding Chute | Electronically controlled folding chute on end of discharge auger |
| Quad View Monitor with 3 cameras | Quad view 9" monitor with 3 Camera’s mounted on the Bin, one on the end of the discharge chute, one inside the bin and one at the rear of the bin |
9" LCD Quad View Colour Digital Touchscreen Monitor
Single, Dual, Triple, Quad-View & Picture in Picture Functions Suitable for up to 4 Waterproof Cameras
- Touchscreen with fingertip operation
- Day / Night brightness controls
- Supplied with centre mount support bracket and U bracket
- Operates from 10-32 Volts
- Supplied with 6 metre power supply cable
- Brightness, colour, contrast, volume & sharp can be separately adjusted
- Vennings recommend fitting one camera on the discharge auger one camera in the bin and one on the rear of the bin for road transport
Click here for more information on monitors and cameras.
_570_235.jpg)
For more information please contact us
Phone: 08 8821 1196
Office / Postal Address
40 Moonta Road
Kadina South Australia 5554
The manufacturer reserves the right to change specification without notice or incurring obligation. Information contained herein is from data available at time of publishing. Photos are for illustration purposes only
