Vennings Push Around Shaft Driven Grain Auger - PTO Drive

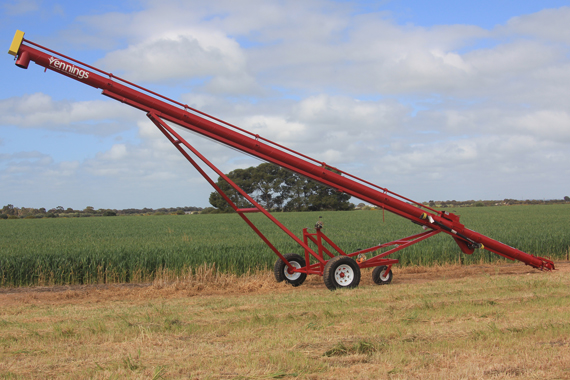

Illustrated 50' X 9" Push Around Shaft Driven PTO Drive Grain Auger Drive Section

42' X 9" Auger Fitted with 198cm 78" (Closed Measurment) PTO Shaft with Safety Cover PTO Shaft In Transport Position  Simple Belt Adjustment, Standard with 250mm x 3 B Section Heavy Duty Belts
Reversible gear box standard on all Vennings augers. Optional Silo Winch for winching auger into bins/silos Safety Cage with removable tow hitch. All exposed flighting is made from 5mm thick plate steel Brake winch for added safety
Standard Steel Hopper with safety mesh Optional Flexible Hopper with safety mesh Large 31X10.5R15 6PLY Light Truck Tyres fitted to augers
Document holder attached to Auger holds motor and auger operating instructions  Optional Drop Spout 5 Section Spout Optional adjustable discharge spout only available on augers with electric start

Optional Jelbart Shifter Lifter Third Wheel System

A basic third wheel system that takes the hard work out of moving augers.  The third wheel system can be fitted to the main axle of most A framed augers. By winding a winch the bottom of the auger is lifted and the weight supported on a third wheel. The auger can then be pulled and pushed around without having to lift the auger. Easily lifts out of the way for road transport. Winner of the inventor of the year award at the Henty Machinery Field Days.



The unit comes in two different sizes, small and large. Small for most augers that are up to 36' long and the large for augers over 36' long.

35' X 9" Auger with Jelbart Shifter Lifter fitted in its working position
Jelbart Shifter Lifter in its raised position for road transport Jelbart Shifter lifter in its working position. The weight is supported on the third wheel

Standard Equipment

  • Reversible Gearbox in case of jam and for easy cleanout
  • New 6 Stud Land Cruiser Hubs and Rims with Second-hand 16" Road Wheels
  • Cast Iron Drive Pulleys 250mm x 3 B Section
  • Detachable Steel Hopper
  • Detachable Tow Hitch
  • New 31 X 10.5R15LT 6 Ply Tyres
  • 7" Augers fitted with Heavy Duty Large Pick up Flight
  • 9" & 10" Augers fitted with Heavy Duty 5mm Thick Large Pick up Flight
  • All moving parts are guarded for your protection and peace of mind
  • Heavy Duty undercarriage

Optional Equipment

  • Jelbart Shifter Lifter third wheel system that includes a Silo Winch for winching auger into bins / silos
  • Electric Winch (12 Volt power to be sourced from tractor)
  • Flexible Plastic Hopper
  • Waterproof 7" LCD Monitor and waterproof camera so you can see what's going on at the end of the auger (12 volt power to be sourced from tractor)
  • Adjustable 12 volt electric discharge spout  (12 volt power to be sourced from tractor)
  • Electric Brakes on road wheels
  • Mudguards fitted with LED Brake/Turning/Tail lights
  • Bean Flighting (reduces capacity on cereals by 2-3 bags per minute)
  • Drop Spouts
Size Approx. Capacity Approx. Lift
42' X 7" 1 1/2 Ton / Minute 31' 6" (9.60m)
47' X 7" 1 1/2 Ton / Minute 35' (10.67m)
42' X 9" 2 Ton / Minute 30' (9.14m)
50' X 9" 2 Ton / Minute 35' 4" (10.77m)
60' X 9" 2 Ton / Minute 40' 6" (12.30m)
42' X 10" 2 1/2 Ton / Minute 30' (9.14m)
50' X 10" 2 1/2 Ton / Minute 35' 4" (10.77m)
60' X 10" 2 1/2 Ton / Minute 40' 6" (12.30m)





For more information please contact us

Phone: 08 8821 1196

Office / Postal Address

40 Moonta Road

Kadina South Australia 5554

The manufacturer reserves the right to change specification without notice or incurring obligation. Information contained herein is from data available at time of publishing. Photos are for illustration purposes only
