Vennings Self-Propelled Shaft Driven Grain Auger

All Self Propelled Augers are now fitted standard with Electric Brakes to the road wheels with a self-contained controller so you can tow the auger legally behind any vehicle with a trailer plug. See below for more information.

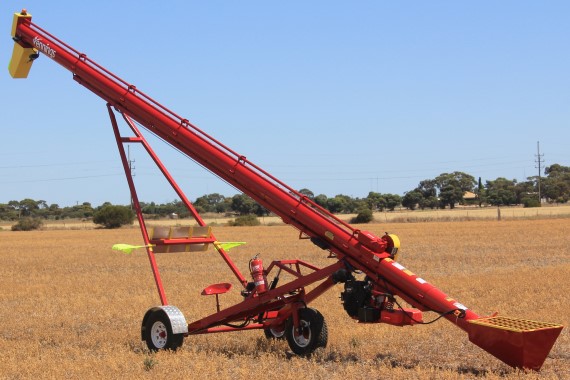

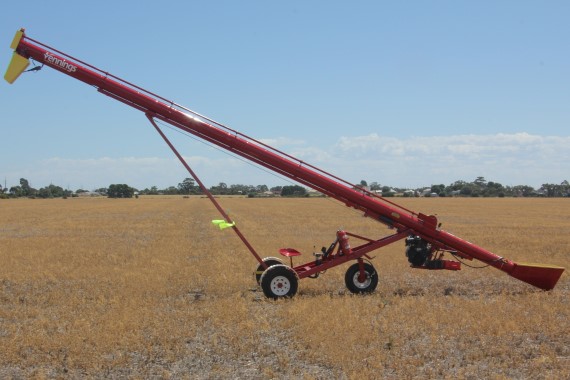

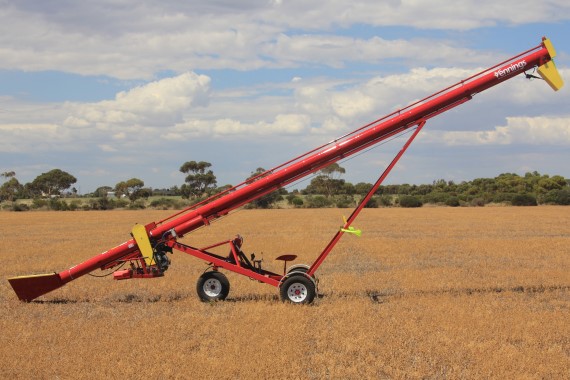

Illustrated 42' X 11" Self Propelled Auger with 37 H/P EFI Vanguard Illustrated with Optional Adjustable Discharge Spout & Mudguards Fitted

SIMPLY SIT ON THE SEAT AND DRIVE IT AWAY

Features mechanically driven auger with maximum efficiency.  Self-Propelled and hydraulic raise, lower & steer for fingertip control with ease of operation and ease on the back. Simply sit on the seat and drive around. All moving parts are guarded for your protection & peace of mind. Make the right choice with a Vennings fully self-contained premium quality self-propelled auger.

Increased capacity with our larger pickup intake flight. 9" Auger Capable of up to 2 ton per minute. 10" Auger Capable of up to 2 1/2 ton per minute. 11" Auger Capable of up to 3 ton per minute.

THE MAIN FEATURES OF OUR NEWLY DESIGNED ENGINE CRADLE

New spring loaded engine cradle which eliminates the belt tension idler. Fitted with a direct driven hydraulic pump. All augers complete with electric start motor & 23 litre fuel tank. Donaldson air cleaner fitted standard to 27, 31, 35 & 37 H/P Vanguard Engines The belts can be put in and out of gear from either side of the auger. Fitted standard with a raised exhaust to keep it well out of the stubble reducing the fire risk. Easily adjust the belt tension by adjusting the turnbuckle (pictured on the right). The spring allows the belts to be put in and out of gear with minimal effort.
Cover off with belts in gear, there are adjustable belt guides on the inside of the belts. The belt guides & the cover hold the belts in position so when the belts are out of gear the auger will not drive. Direct drive pump attaches to the three belt cast iron pulley.
Photo with cover on.
Direct drive pump attaches to the three belt cast iron pulley.
Photo with cover off.
A newly deigned manifold & exhaust has allowed us to directly attach the muffler to the manifold without the use of flexible tubing. Exhaust with rain cap fitted
After market upgrades for
existing augers are available

The Fuses, Electric Brake
Controller and Spout controller are tucked away in the channel of the cradle protecting them from the elements
Three belt drive with belt guides behind the belts that hold the belts when they are out of gear



THE MAIN FEATURES OF OUR NEWLY DESIGNED AUGER LIFT

A newly designed hydraulic cylinder with built in counter balance valve. An extra pulley has allowed us to have the hydraulic cylinder rod inside the hydraulic
cylinder barrel when the auger is in its resting/transporting position so the rod is not
exposed to the elements reducing the risk of the cylinder rod pitting or bending in transport.
Reversible gear box standard on all Vennings augers. One of the two 1200 lumen Led Lights fitted to all Self Propelled Augers 10" Electric Brakes fitted to the road wheels with a self contained controller so you can tow the auger legally behind any vehicle with a trailer plug. All Vennings Self Propelled augers are over 1 ton so brakes are a legal requirement
A motion control valve has been added to the drive motor, providing a brake like function on the third wheel, allowing easier control and restricts the roll back when entering the silo, without roll on/back. Heavy duty 20mm thick gear drive on the third wheel with Heavy Duty NEW 31x10.5R 15LT 6 Ply Tyres Third wheel in transport position, No need to disconnect drive wheel or brake

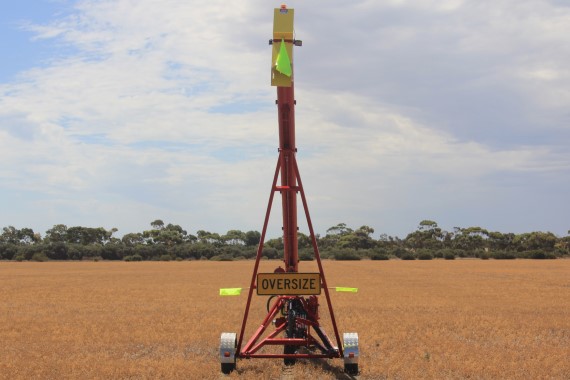

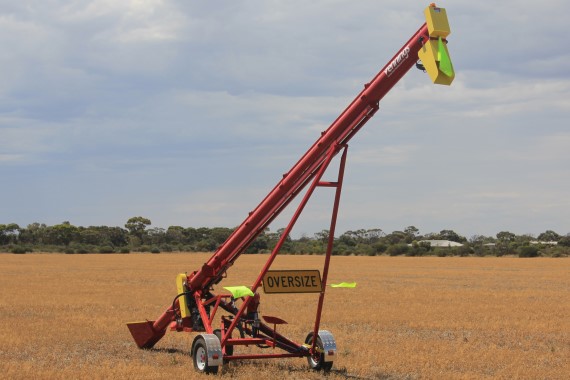

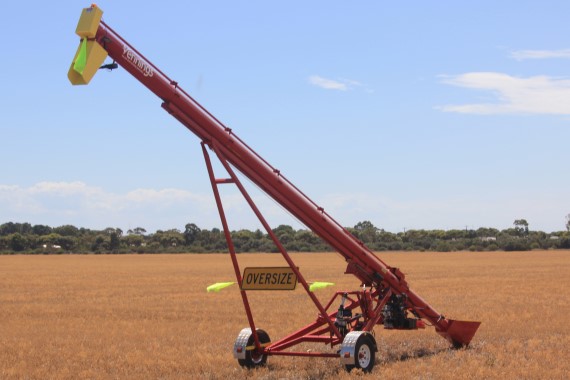

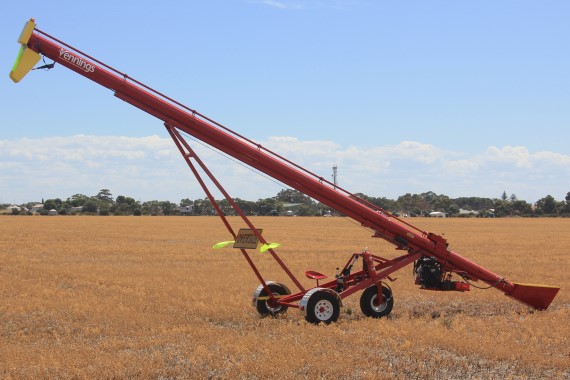

Oversize sign & flags showing width extremities are fitted to 42’, 50’ & 60’ Au-gers (not required on 35’ as it’s not oversize) A flag is fitted to the end of all augers. A LED revolving light is fitted to the top end of all 42’, 50’ & 60’ Augers as per legal requirments (not required on 35’ as it’s not oversize) Optional Mudguards fitted with LED Brake/Turning/Tail lights
Standard Steel Hopper with safety mesh with cleanout trapdoor fitted Steel hopper in transport position mounted to bottom frame so its always with auger. Poly Hopper with rubber top. Slender design allows auger to be placed under silo with the hopper attached to the auger.
Optional Flexible Hopper with safety mesh Safety Cage with removable tow hitch. All exposed flighting is made from 5mm thick plate steel Tow hitch in storage when not in use so the tow hitch is always with the auger when its needed
Emergency Stop Switch fitted near intake end of auger Document holder attached to Auger holds motor and auger operating instructions Simplex sprockets fitted to 9”
Duplex sprockets fitted to all 10” & 35 & 42’ X 11” Triplex sprockets fitted to 60’ X 11”
Simply sit on the swivelling seat & drive around Extra wide axles are fitted to all 60’ augers for increased stability and safety, Overall width on 60’ auger is 3,340mm Overhead supports are fitted to 60’ augers for increased strength and support
60' x 10" at Maximum Lift 12.19 Metres 40' 60' x 10" over a Sherwell Ahrens (Tarranyurk) 126 Ton 158 M3 Model S1460 Bin

35' x 10" Auger at Maximum Lift  7.71 Metres (23' 6")

Optional adjustable spout in fully contracted position

Adjustable spout in mid position

Optional adjustable spout in fully extended position
Optional 3 Section drop spout with approximately 700mm drop Optional 5 Section drop spout with approximately 1100mm drop Optional 7 Section drop spout with approximately 1500mm drop

Controls With Optional 7” Waterproof Monitor

Optional Camera fitted to outlet of auger

Fire Extinguisher supplied on all augers Seat and controls Safety operating stickers to promote safety

SPARE PARTS BONUS

Transmission Spare Parts Kit Motor & Hydraulic Service Kit
Kit Includes
3 X Main Drive Carlisle Super 2 Belts
1 x Drive Shaft Sprocket
1 x Flight Sprocket
1 x Drive Chain 60ASA with joiner
Kit Includes
1 X Inner Air Cleaner Filter
1 x Outer Air Cleaner Filter
1 x Motor Oil Filter
1 x 2.5 Litre Bottle of SAE30 Motor Oil
1 x Fuel Filter
2 x Spark Plugs
1 x Oil Filter to suit Hydraulics

Standard Equipment

  • Vanguard Electric Start Motor
  • Reversible Gearbox
  • Hydraulic Ram Raise and Lower
  • Hydraulic Ram Steering
  • 10" Electric Brakes fitted to the road wheels with a self contained controller so you can tow the auger legally behind any vehicle with a trailer plug. All Vennings Self Propelled augers are over 1 ton so brakes are a legal requirement
  • A motion control valve has been added to the drive motor, providing a brake like function on the third wheel, allowing easier control and restricts the roll on/back.
  • Triple Drive Kit three B Section Heavy Duty Calisle Super 2 belts
  • New 31 x 10.5R15LT 6 Ply Tyres on all 3 wheels
  • New 6 Stud Land Cruiser Hubs and Rims
  • Extra heavy 50mm axles and B class parallel bearings rated at 1600 kilograms.
  • Cast Iron Drive Pulleys
  • Detachable Steel Hopper with a trapdoor mounts to the bottom frame when not in use, so it is always with the auger.
  • Detachable Tow Hitch
  • Heavy Duty 5mm Thick Large Pick up Flight
  • Emergency Stop Switch
  • Heavy Duty undercarriage
  • 9 Litre Water fire extinguisher
  • 23 Litre Fuel Tank
  • 2 x 1200 Lumen LED work lights
  • Fitted with a flag at the top end of the auger.
  • 42’, 50’ & 60’ augers are fitted with an oversize sign, LED revolving light at the top of the auger and flags over the wheels. (not required on 35’ augers as they are not oversize)
  • Motor Service kit with 27 H/P, 31 H/P, 35 & 37 H/P Vanguard motors only (Kit includes 1 x inner & 1 X outer air filter, 1 x oil filter, 1 x 2.5 litre bottle of oil, 2 x spark plugs & 1 x fuel filter)
  • Hydraulic Service Kit (Kit includes 1 x Hydraulic Oil Filter)
  • Transmission Spare Parts Kit (Kit includes 3 x Carlise super 2 drive belts, 1 x drive shaft sprocket, 1 x flight sprocket & 1 x drive chain

Optional Equipment

  • Waterproof 7" LCD Monitor and waterproof camera so you can see what's going on at the end of the auger
  • Adjustable 12 volt electric discharge spout
  • Mudguards fitted with LED Brake/Turning/Tail lights
  • Bean Flighting (reduces capacity on cereals by 2-3 bags per minute)
  • Drop Spouts

Motor Options

  • 27 H/P Vanguard
  • 31 H/P Vanguard
  • 35 H/P Vanguard
  • 37 H/P EFI Vanguard
Size

Approx. Capacity

Approx. Lift Minimum Recommendations
35' X 9" 2 1/2 Ton Per Minute 23' 6" (7.71m) Minimum 27 H/P
35' X 10" 2 1/2 Ton Per Minute 23' 6" (7.71m) Minimum 27 H/P
35' X 11" 3 Ton Per Minute 23' 6" (7.71m) Minimum 31 H/P
42' X 9"  2 Ton Per Minute 30' (9.14m) Minimum 27 H/P
42' X 10" 2 1/2 Ton Per Minute 30' (9.14m) Minimum 31 H/P
42' X 11" 3 Ton Per Minute 30' (9.14m) Minimum 35 H/P
50' X 9" 2 Ton Per Minute 35' 4" (10.77m) Minimum 27 H/P
50' X 10" 2 1/2 Ton Per Minute 35' 4" (10.77m) Minimum 31 H/P
50' X 11" 3 Ton Per Minute 35' 4" (10.77m) Minimum 35 H/P
60' X 9" 2 Ton Per Minute 40' 6" (12.30m) Minimum 31 H/P
60' X 10" 2 1/2 Ton Per Minute 40' 6" (12.30m) Minimum 35 H/P
60' X 11" 3 Ton Per Minute 40' 6" (12.30m) Minimum 37 H/P

All Vennings Self Propelled Augers are now fitted with Electric Brakes with a self-contained controller so the auger can be legally towed at the sign posted speed behind any vehicle.

In S.A. & N.S.W. the maximum speed at which you can tow any agricultural implement without brakes is 50 km/hour. In Vic. the maximum speed at which you can travel is 20km/h less than the road speed limit.

If your agricultural implement is fitted with brakes, normal speed limits apply.

We can fit electric brakes to push around and PTO augers, and supply kits so they can be fitted to old augers, please contact us if you would like more information.






For more information please contact us


Phone: 08 8821 1196





Office / Postal Address

40 Moonta Road

Kadina South Australia 5554

The manufacturer reserves the right to change specification without notice or incurring obligation. Information contained herein is from data available at time of publishing. Photos are for illustration purposes only
