Vennings Grain Cleaner

Top and side covers are hinged, allowing screens to be simply changed.  Quick release over centre catches on straps, makes changing screens a simple task Cleaning is thorough and handling is gentle because with the unique stationary baffle design.
Top safety cover fitted with rubber sweep to keep screen clean All moving parts are guarded for your protection and peace of mind Supplied with mesh guarded hopper with choke fitted to flight cage

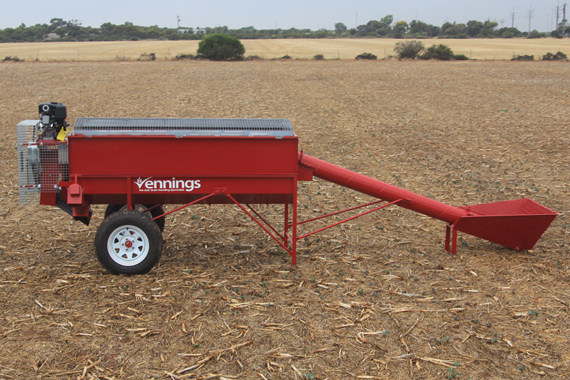

The GT Grain cleaner is completely portable on 185/60R 14” wheels. It is versatile and flexible so that you can insert it into about any point of your grain handling and storage system. The chain driven drum gently yet thoroughly removing fines, chaff, weed seeds and other foreign material.

Cleaning is thorough and handling is gentle because of the unique stationary baffle design. As the drum rotates, three processes occur. First, the grain moves the length of the drum to the discharge end. Second, it moves laterally across the diameter of the drum. Third, it is constantly stirred so the grain passes over the screen repeatedly while it is moving directionally.

Comes with 6.5 H/P Vanguard (Optional 5 H/P Honda Motor available), New 185/60R14” wheels, steel hopper, tow hitch and a 2.5mm standard wheat barley screen.

Mesh Screen sizes available

1.25mm 2.24mm 3.15mm 4.00mm 5.60mm 7.10mm
2.00mm 2.50mm 3.55mm 5.00mm 6.30mm 8.00mm



A large range of slotted and punch hole screens are available but not stocked due to the large range of options


For more information please contact us

Phone: 08 8821 1196



Office / Postal Address

40 Moonta Road

Kadina South Australia 5554

The manufacturer reserves the right to change specification without notice or incurring obligation. Information contained herein is from data available at time of publishing. Photos are for illustration purposes only
