Vennings Push Around Shaft Driven Grain Auger - Motor Driven

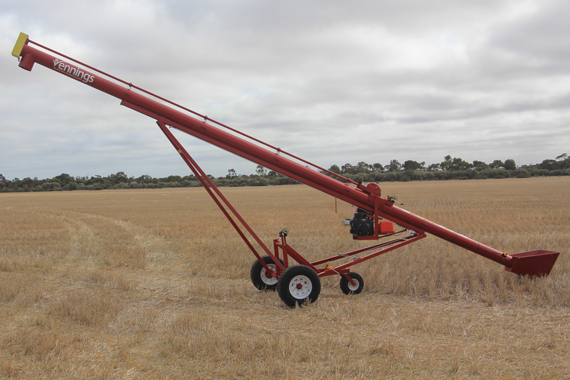

Illustrated 35' X 9" Auger with optional Jelbart shifter lifter third wheel system, new tyres & silo winch Fitted



Features mechanically driven auger with maximum efficiency.  All moving parts are guarded for your protection & peace of mind. Make the right choice with a Vennings premium quality auger.

Increased capacity with our larger pickup intake flight. 7" Auger Capable of between 15-18 bags per minute or up to 1 1/2 ton per minute. 9" Auger Capable of between 20-24 bags per minute or up to 2 ton per minute. 10" Auger Capable of between 30-36 bags per minute or up to 2 1/2 ton per minute.

35' X 9" Fitted with 21 H/P Vanguard Motor complete with electric start & 12 litre fuel tank. 23 Litre tanks standard on 42-50'  Reversible gear box standard on all Vennings augers. Optional Silo Winch for winching auger into bins/silos Safety Cage with removable tow hitch. All exposed flighting is made from 5mm thick plate steel
Brake winch for added safety  Standard Steel Hopper with safety mesh Optional Flexible Hopper with safety mesh
Emergency Stop Switch fitted near intake end of auger Large 31X10.5R15 6PLY Light Truck Tyres fitted to augers Document holder attached to Auger holds motor and auger operating instructions
Optional Drop Spout 5 Section Spout Optional adjustable discharge spout only available on augers with electric start Optional Exhaust Upgrade. Kit only available on 27, 31 & 35 H/P Vanguards

Optional Jelbart Shifter Lifter Third Wheel System

A basic third wheel system that takes the hard work out of moving augers.  The third wheel system can be fitted to the main axle of most A framed augers. By winding a winch the bottom of the auger is lifted and the weight supported on a third wheel. The auger can then be pulled and pushed around without having to lift the auger. Easily lifts out of the way for road transport. Winner of the inventor of the year award at the Henty Machinery Field Days.

The unit comes in two different sizes, small and large. Small for most augers that are up to 36' long and the large for augers over 36' long.

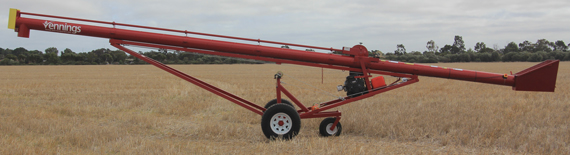

35' X 9" Auger with Jelbart Shifter Lifter fitted in its working position
Jelbart Shifter Lifter in its raised position for road transport Jelbart Shifter lifter in its working position. The weight is supported on the third wheel



Standard Equipment

  • 13 H/P Vanguard Manual or Electric Start on 31' & 36' x 7" Augers
  • 21 H/P Vanguard Electric Start Motor on 35' 42' 47' & 50' Augers
  • All Electric Start Motors come with A Battery
  • Reversible Gearbox in case of jam and for easy cleanout
  • New 6 Stud Land Cruiser Hubs and Rims with Second-hand 16" Road Wheels
  • Cast Iron Drive Pulleys
  • Detachable Steel Hopper
  • Detachable Tow Hitch
  • 7" Augers fitted with Heavy Duty Large Pick up Flight
  • 9" & 10" Augers fitted with Heavy Duty 5mm Thick Large Pick up Flight
  • Emergency Stop Switch
  • All moving parts are guarded for your protection and peace of mind
  • Heavy Duty undercarriage
  • Standard Engine Fuel Tank on 31' & 36' Augers
  • 12 Litre Fuel Tank on 35' Augers
  • 23 Litre Fuel Tank on 42' - 50' Augers

Optional Equipment

  • Jelbart Shifter Lifter third wheel system
  • Silo Winch for winching auger into bins / silos
  • Triple Drive Kit (three belts instead of 2)
  • Electric Winch
  • Flexible Plastic Hopper
  • Remote Mounted Exhaust suits 27 H/P, 31 H/P & 35 H/P Vanguard motors only
  • New 31 X 10.5R15LT 6 Ply Tyres
  • Waterproof 7" LCD Monitor and waterproof camera so you can see what's going on at the end of the auger
  • Adjustable 12 volt electric discharge spout
  • Electric Brakes on road wheels
  • Mudguards fitted with LED Brake/Turning/Tail lights
  • Bean Flighting (reduces capacity on cereals by 2-3 bags per minute)
  • Drop Spouts

Motor Options

  • 13 H/P Vanguard Manual Start
  • 13 H/P Vanguard Electric Start
  • 13 H/P Honda Manual Start
  • 13 H/P Honda Electric Start
  • 21 H/P Vanguard Electric Start
  • 23 Class 20.8 H/P Honda Electric Start
  • 23 H/P Vanguard Electric Start
  • 27 Class 22.1 H/P Honda Electric Start
  • 27 H/P Vanguard Electric Start
  • 31 H/P Vanguard Electric Start
  • 35 H/P Vanguard Electric Start
Size Approx. Capacity Approx. Lift Standard Motor
31' X 7" 1 1/2 Ton / Minute 22' 7" (6.89m) 13 H/P Vanguard Manual or Electric Start
36' X 7" 1 1/2 Ton / Minute 23' 7" (7.19m) 13 H/P Vanguard Manual or Electric Start
42' X 7" 1 1/2 Ton / Minute 31' 6" (9.60m) 21 H/P Vanguard Electric Start
47' X 7" 1 1/2 Ton / Minute 35' (10.67m) 21 H/P Vanguard Electric Start
35' X 9" 2 Ton / Minute 23' 6" (7.16m) 21 H/P Vanguard Electric Start
42' X 9" 2 Ton / Minute 30' (9.14m) 21 H/P Vanguard Electric Start
50' X 9" 2 Ton / Minute 35' 4" (10.77m) 21 H/P Vanguard Electric Start
35' X 10" 2 1/2 Ton / Minute 23' 6" (7.16m) 21 H/P Vanguard Electric Start
42' X 10" 2 1/2 Ton / Minute 30' (9.14m) 21 H/P Vanguard Electric Start
50' X 10" 2 1/2 Ton / Minute 35' 4" (10.77m) 21 H/P Vanguard Electric Start



For more information please contact us

Phone: 08 8821 1196

Office / Postal Address

40 Moonta Road

Kadina South Australia 5554

The manufacturer reserves the right to change specification without notice or incurring obligation. Information contained herein is from data available at time of publishing. Photos are for illustration purposes only
