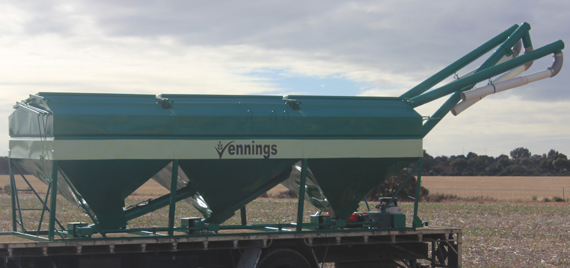

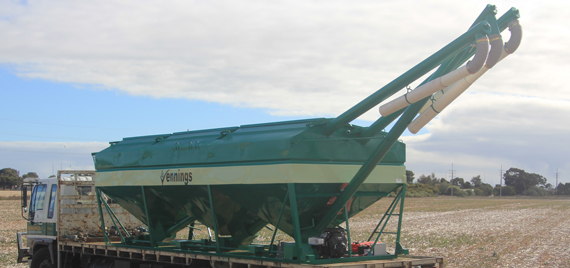

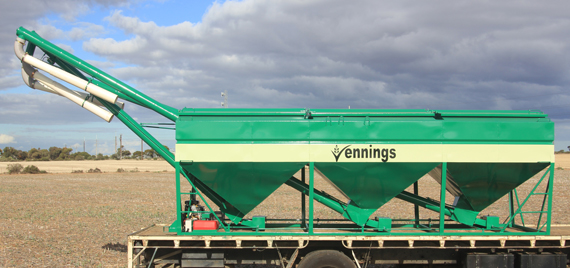

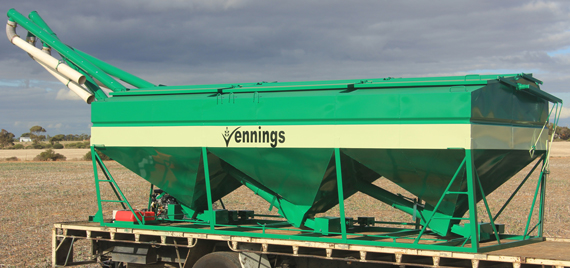

Vennings Rear Discharge Triple Bin Seed & Super Unit

Independently operated lids to eliminate contamination. One of the three lids open All three waterproof lids in closed position All lids are operated from the rear of the bin
Bin trapdoor for grain / fertilizer / urea flow and cleanout both in closed position Bin trapdoor for grain / fertilizer / urea flow in closed and cleanout in opened position Bin trapdoor for grain / fertilizer / urea flow and cleanout both in opened position
21 H/P Vanguard Electric Start Motor with Battery. Optional Honda also available
Simple tumbling tommy setup for putting belts in and out of gear from air-seeder or combine. Simple tumbling tommy setup allows all augers to be run simultaneously or
individually.
All moving parts are guarded for your protection & peace of mind.
Optional electric clutches with switches to operate each bin can be fitted for ease of use.   View with all augers at rear of bin PVC spouts available in 1200mm closed 2300mm opened or 600mm closed 1100mm opened

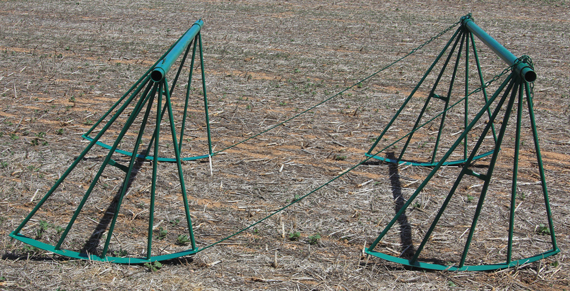

Hobbs Hoists stands are avaibale as as option to suit any bin



The triple rear discharge seed and super unit comes in a variety of sizes from 20' to 24' long.

With individually opening waterproof lids, separately operated 163mm (6 3/8”) augers and totally enclosed compartments the unit is free of any contamination.

Ideal for air-seeders and combines alike, the longer top augers and larger diameter tube make the bin even easier to use. Discharging at a rate of over 350 kilograms of super per minute, filling an air-seeder or combine is a quick and hassle free experience.

All of the augers are PVC lined to prevent super build-up.

All bins are fitted with a large sliding trapdoor at the bottom for quick unloading and cleaning.

Augers can be run simultaneously or individually.

Powered by a 21 H/P Vanguard electric start motor. Option on Honda availbale.

Simple belt drive, no cross augers or gears to cause problems. Painted interior

Bin 20' Bin 20' Bin 22' Bin 24' Bin 24' Bin
Bin Configuration 8' + 6' + 6' 7' + 7' + 6' 8' + 8' + 6' 8' + 8' + 8' 9' + 8' + 7'
Bin Length (overall) Metres Metres Metres Metres Metres
Chassis Length
Chassis Width 2.02 Metres 2.02 Metres 2.02 Metres 2.02 Metres 2.02 Metres
Bin Width 2.40 Metres 2.40 Metres 2.40 Metres 2.40 Metres 2.40 Metres
Fill Height 1.97 - 2.10 Metres 1.97 - 2.10 Metres 1.97 - 2.10 Metres 1.97 - 2.10 Metres 1.97 - 2.10 Metres
Overall Height 2.14 Metres 2.14 Metres 2.14 Metres 2.14 Metres 2.14 Metres
Lid Opening 2.24 + 1.65 + 1.65
X 1.27 Metres
1.95 + 1.95 + 1.65
X 1.27 Metres
2.24 + 2.24 + 1.65
X 1.27 Metres
2.24 + 2.24 + 2.24
X 1.27 Metres
2.54 + 2.24 + 1.95
X 1.27 Metres
Auger Discharge Height from truck Tray (measurement taken from bottom of steel outlet to truck tray height) Metres Metres Metres Metres Metres
Auger Discharge Reach from truck Tray (measurement taken from steel outlet to truck tray) Metres Metres Metres Metres Metres
Seed Capacity Bags Bags Bags Bags Bags
Fertiliser Capacity Ton Ton Ton Ton Ton
Urea Capacity Ton Ton Ton Ton Ton
Weight (approximate) Kg Kg Kg Kg Kg




For more information please contact us

Phone: 08 8821 1196

Office / Postal Address

40 Moonta Road

Kadina South Australia 5554

The manufacturer reserves the right to change specification without notice or incurring obligation. Information contained herein is from data available at time of publishing. Photos are for illustration purposes only
