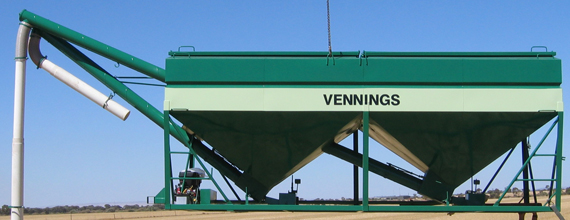

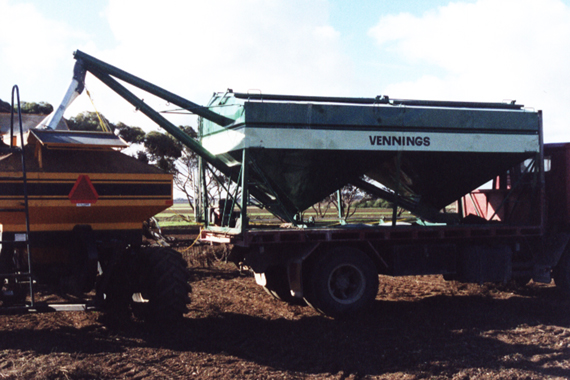

Vennings Rear Discharge Double Bin Seed & Super Unit

Hobbs Hoists stands are avaibale as as option to suit any bin



Like the standard seed and super loader, the rear discharge is designed to eliminate the chance of contamination of seed and super as there are separately operated lids and augers.

Both augers are PVC lined and can be run at the same time or individually, depending on your need.  The unit is powered by a Manual or Electric start 13 HP Vanguard engine, with an option of Honda in manual or electric start.  Simply driven by shafts and a pulley system, this unit is easy to use and clean out with sliding trap doors for quick cleaning or unloading.

Bin 14' Bin 16' Bin 18' Bin
Bin Configuration 7' + 7' 8' + 8' 9' + 9'
Bin Length (overall)
Chassis Length 4.20 Metres 4.80 Metres 5.40 Metres
Bin Width 2.40 Metres 2.40 Metres 2.40 Metres
Bin Width 2.00 Metres 2.00 Metres 2.00 Metres
Fill Height
Overall Height
Lid Opening 1.95 Metres 2.25 Metres
Auger Discharge Height from truck Tray (measurement taken from steel outlet to truck tray height)
Auger Discharge Reach from truck Tray (measurement taken from steel outlet to truck tray)
Seed Capacity 49 Bags 56 Bags 63 Bags
Fertiliser Capacity 5.5 Ton 6.3 Ton 7.0 Ton
Weight (Approximate)



For more information please contact us

Phone: 08 8821 1196

Office / Postal Address

40 Moonta Road

Kadina South Australia 5554

The manufacturer reserves the right to change specification without notice or incurring obligation. Information contained herein is from data available at time of publishing. Photos are for illustration purposes only
