Vennings Maxifill Double Bin Seed & Super Unit

Hobbs Hoists stands are avaibale as as option to suit any bin

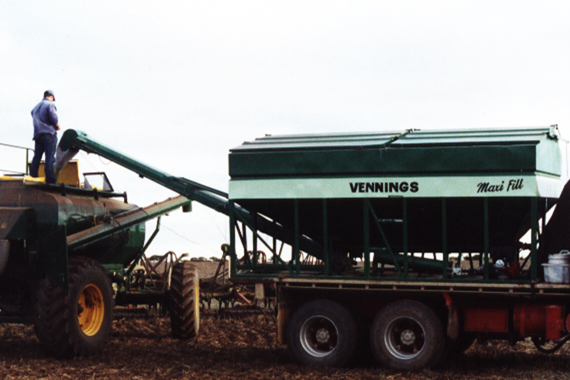

Fast and efficient loader for air-seeders and combines, 40 row wide lines can be filled from one position. Patented folding and swivelling “U” shaped elevating belt. Able to handle all types of seed and fertilizer without cracking and damaging. Seed bin completely self-emptying. Super bin has simple hinged bottom door to allow cleaning and maintenance on cross auger. Two electric actuators operate seed and super doors by a switch at the top of the tabulator. Simple, efficient direct coupled hydraulic motor drives unit fitted with 21 H/P Vanguard Electric Start Motor. The Bin has two separate waterproof lids as standard.

Bin 15' Bin 17' Bin
Bin Length (overall) 4570mm Long 5180mm Long
Bin Width 2400mm 2400mm
Chassis Width
Fill Height
Overall Height 2185mm 2185mm
Lid Opening
Side Reach     90 Degrees to Bin 4000mm 90 Degrees to Bin 4000mm
Rear Reach 3600mm 3600mm
Height under Discharge Head 2030mm from Truck Tray 2030mm from Truck Tray
Folded Height 2730mm from Truck Tray 2730mm from Truck Tray
Conveyer Dimensions Tube Size 8" 200mm Tube Size 8" 200mm
  Belt Width 12" 300mm Belt Width 12" 300mm
Seed Capacity   63 Bags approx. 5.25 Ton Wheat
Fertiliser Capacity 6.50 Ton Single Super
Weight (approximate)



Triple compartment bin also available

For more information please contact us

Phone: 08 8821 1196

Office / Postal Address

40 Moonta Road

Kadina South Australia 5554

The manufacturer reserves the right to change specification without notice or incurring obligation. Information contained herein is from data available at time of publishing. Photos are for illustration purposes only
