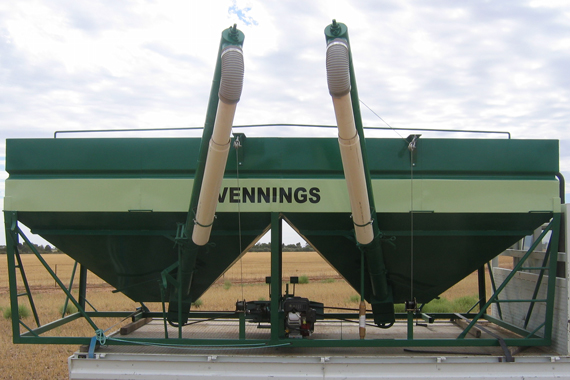

Vennings Economy Seed & Super Unit

The Economy seed and super units have been designed for the farmer, who wishes to enter the age of bulk handling, without the expense of a standard bin.  The economy units available in 4 different sizes and you have a choice of motor.  You have a choice of the following combinations.

Hobbs Hoists stands are avaibale as as option to suit any bin






Size 12' Bin 14' Bin 14' 6/8 Bin 16' Bin
Bin Configuration 6' + 6' 7' + 7' 6' + 8' 8' + 8'
Bin Length (Overall)
Chassis Length 3.60 Metres 4.20 Metres 4.20 Metres 4.80 Metres
Bin Width 2.40 Metres 2.40 Metres 2.40 Metres 2.40 Metres
Chassis Width 2.00 Metres 2.00 Metres 2.00 Metres 2.00 Metres
Fill Height 1.82 Metres 1.82 Metres 1.82 Metres 1.82 Metres
Overall Height
Lid Opening 1.65 Metres 1.95 Metres 1.65 or 2.25 Metres 2.25 Metres
Auger Discharge Height from truck Tray (measurement taken from steel outlet to truck tray height)
Auger Discharge Reach from truck Tray (measurement taken from steel outlet to truck tray)
Seed Capacity 38 Bags 44 Bags 38 or 50 Bags 50 Bags
Fertiliser Capacity 4.3 Ton 5.0 Ton 4.3 or 5.7 Ton 5.7 Ton
Weight (approximate) 640 Kg 680 Kg 680 Kg 720 Kg



Both hoppers are fitted with a P.V.C. lined auger, which is hinged to make transportation easy.  Top auger sections can be removed quickly via the removal of one pin.

The drive of the unit is simple and easy to use.  There is no cross augers, or gear boxes, which can cause problems.  Each bin is undercoated and top coated Vennings green to stop the rusting effect of the superphosphate.

Each unit comes complete with a 6.5 H/P Manual or Electric start Vanguard Engine, with an option of a 5.5 H/P Honda Manual or Electric start models.





For more information please contact us

Phone: 08 8821 1196

Office / Postal Address

40 Moonta Road

Kadina South Australia 5554

The manufacturer reserves the right to change specification without notice or incurring obligation. Information contained herein is from data available at time of publishing. Photos are for illustration purposes only
